Classic II Steel Service Body
Get the durability and strength of premium steel to take on the toughest jobs. Our innovative locking system and an abundance of storage secures and organizes your tools. Built to last for the long haul.
Aluminum chock block holders with chains to secure chock blocks. Can be ordered as single or dual per body side. Protects the service body from nicks and scratches from repeated insertion and removal of chock blocks. Available for both the Aluminum Classic II and Steel Classic II.
Bright finish aluminum treadplate splash guards are installed on the front of body panels and on top of the tailgate to produce an appealing, modern look and protect against regular wear and tear from road travel and loading. Available on the Aluminum Classic II and the Steel Classic II.
Ensure that you’ll be able to see your stored equipment and tools at any time of day with compartment lighting, which is automatically activated with Latch-Matic® keyless remote controller. These lights are programmed to go off automatically after 10 minutes or when the doors are locked, which helps to maximize the bulb’s lifespan. The lights feature impact-resistant Lexan lenses.
Removable steel ladder racks store ladders securely out of the way on the top of your service body.
Create a secure seal on your service body compartment doors without sacrificing convenience, all with the snap of a single handle and padlock. The master locking steel slide bar simultaneously locks an entire compartment side to keep your tools and other equipment safe. The bar, which works independently of the Latch-Matic remote system, is spring-loaded for easy operation.
Rugged steel construction helps to maintain a robust and durable grip on all of your pipes regardless of size, design or material. The rack holds pipe sections securely in place, allowing you to maximize the available space on your service body. Available on both the Aluminum Classic II and the Steel Classic II.
Offering a different orientation for people who want the increased functionality of a ladder rack without the particular placement of an overhead mount, the removable side-mount ladder rack is available in angular and flat rack designs for both the Aluminum Classic II and Steel Classic II service bodies. You can remove this mount when not in use.
CLASSIC II STEEL SERVICE BODY - Single Wheel
MODEL | APPROX. WT. | CAB-TO-AXLE | A | B | C | D | APPROX. COMPARTMENT CLEAR DOOR OPENINGS | |||||||||||||||
E | F | G | H | I | ||||||||||||||||||
STANDARD | ||||||||||||||||||||||
**78-SWs | 882 lbs. | 40” | 18” | 42” | 18” | 78” | 12-1/2” x 33-3/8” | 40-1/2” x 11-7/8” | 12-1/2” x 33-3/8” | 56-1/2” x 11-7/8” | 12-1/2” x 16-1/4” | |||||||||||
82F-SW | 957 lbs. | 40” | 17” | 42” | 23” | 82” | 11-1/2” x 33-3/8” | 40-1/2” x 11-7/8” | 17-1/2” x 33-3/8” | 66-1/2” x 11-7/8” | 17-1/2” x 16-1/4” | |||||||||||
*U98-SWs | 1046 lbs. | 56” | 28” | 47” | 23” | 98” | 22-1/2” x 33-3/8” | 45-1/2” x 11-7/8” | 17-1/2” x 33-3/8” | 66-1/2” x 11-7/8” | 17-1/2” x 16-1/4” | |||||||||||
*U108-SWs | 1158 lbs. | 60” | 33” | 47” | 28” | 108” | 27-1/2” x 33-3/8” | 45-1/2” x 11-7/8” | 22-1/2” x 33-3/8” | 71-1/2” x 11-7/8” | 22-1/2” x 16-1/4” | |||||||||||
Low Profile | ||||||||||||||||||||||
**LP-78SWs | 813 lbs. | 40” | 18” | 42” | 18” | 78” | 12-1/2” x 28-3/8” | 40-1/2” x 6-7/8” | 12-1/2” x 28-3/8” | 56-1/2” x 6-7/8” | 12-1/2” x 16-1/4” | |||||||||||
LP82SWs | 885 lbs. | 40” | 17” | 42” | 23” | 82” | 11-1/2” x 28-3/8” | 40-1/2” x 6-7/8” | 17-1/2” x 28-3/8” | 61-1/2” x 6-7/8” | 17-1/2” x 16-1/4” | |||||||||||
*ULP98SWs | 965 lbs. | 56” | 28” | 47” | 23” | 98” | 22-1/2” x 28-3/8” | 45-1/2” x 6-7/8” | 17-1/2” x 28-3/8” | 66-1/2” x 6-7/8” | 17-1/2” x 16-1/4” | |||||||||||
*ULP108-SWs | 1072 lbs. | 60” | 33” | 47” | 28” | 108” | 27-1/2” x 28-3/8” | 45-1/2” x 6-7/8” | 22-1/2” x 28-3/8” | 71-1/2” x 6-7/8” | 22-1/2” x 16-1/4” |
Compartment Layout: Standard

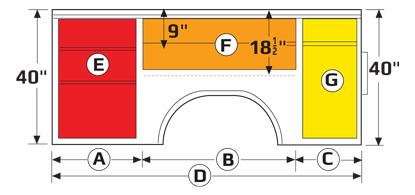

“A” Compartment Layout

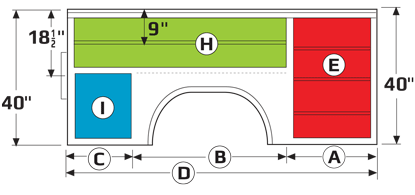

“B” Compartment Layout

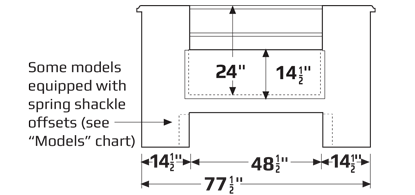

Rear View
Compartment Layout: Low Profile

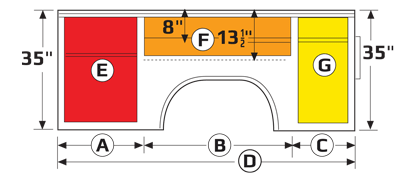

“A” Compartment Layout
“B” Compartment Layout

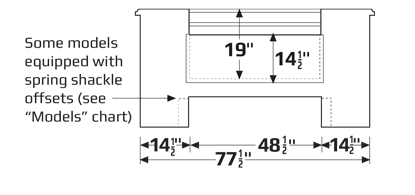

Rear View
CLASSIC II STEEL SERVICE BODY - Dual Wheel
MODEL | APPROX. WT. | CAB-TO-AXLE | A | B | C | APPROX. COMPARTMENT CLEAR DOOR OPENINGS | J | K | L | M | ||||||||||||||||||
E | F | G | H | I | ||||||||||||||||||||||||
STANDARD | ||||||||||||||||||||||||||||
U98-DWs | 1164 lbs. | 56” | 91-1/2” | 48-1/2” | 21-1/2” | 22-1/2” x33-3/8” | 45-1/2” x11-7/8” | 17-1/2” x33-3/8” | 66-1/2” x11-7/8” | 17-1/2” x16-1/4” | 28” | 47” | 23” | 98” | ||||||||||||||
U108-DW | 1251 lbs. | 60” | 91-1/2” | 48-1/2” | 21-1/2” | 27-1/2” x33-3/8” | 45-1/2” x11-7/8” | 22-1/2” x33-3/8” | 71-1/2” x11-7/8” | 22-1/2” x16-1/4” | 33” | 47” | 23” | 108” | ||||||||||||||
LOW PROFILE | ||||||||||||||||||||||||||||
ULP98-DWs | 1076 lbs. | 56” | 91-1/2” | 48-1/2” | 21-1/2” | 22-1/2” x28-3/8” | 45-1/2” x6-7/8” | 17-1/2” x28-3/8” | 66-1/2” x6-7/8” | 17-1/2” x16-1/4” | 28” | 47” | 23” | 98” | ||||||||||||||
ULP108-DW | 1161 lbs. | 60” | 91-1/2” | 48-1/2” | 21-1/2” | 27-1/2” x28-3/8” | 45-1/2” x6-7/8” | 22-1/2” x28-3/8” | 71-1/2” x6-7/8” | 22-1/2” x16-1/4” | 33” | 47” | 28” | 108” | ||||||||||||||
MODEL | APPROX. WT. | CAB-TO-AXLE | APPROX. COMPARTMENT CLEAR DOOR OPENINGS | |||||||||||||||||||||||||
A | B | C | D | E | F | |||||||||||||||||||||||
UR132AB-DW | 1502 lbs. | 84″ | 27-1/2″x33-3/8” | 17-1/2″x33-3/8” | 45-1/2″x11-7/8” | 22-1/2″x33-3/8” | 22-1/2″x16-1/4″ | 71-1/2″x11-7/8” | ||||||||||||||||||||
ULPR132AB-DW | 1392 lbs. | 84″ | 27-1/2″x28-3/8″ | 17-1/2″x28-3/8″ | 45-1/2″x6-7/8” | 22-1/2″x28-3/8″ | 22-1/2″x16-1/4″ | 71-1/2″x6-7/8” | ||||||||||||||||||||
USR132AB-DW | 1757 lbs. | 84″ | 27-1/2″x33-3/8” | 17-1/2″x33-3/8” | 45-1/2″x11-7/8” | 22-1/2″x33-3/8” | 22-1/2″x16-1/4″ | 71-1/2″x11-7/8” | ||||||||||||||||||||
USLPR132AB-DW | 1652 lbs. | 84″ | 27-1/2″x28-3/8″ | 17-1/2″x28-3/8″ | 45-1/2″x6-7/8” | 22-1/2″x28-3/8″ | 22-1/2″x16-1/4″ | 71-1/2″x6-7/8” |

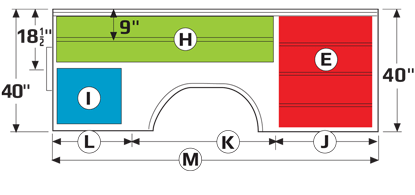

Compartment Layout: Standard
“A” Compartment Layout
“B” Compartment Layout

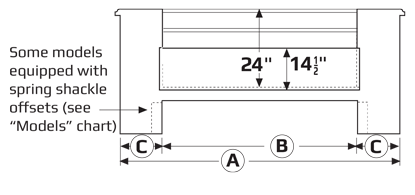

Rear View

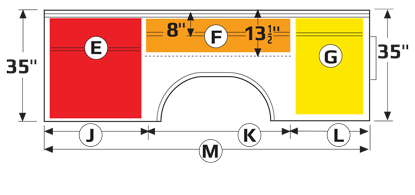

Compartment Layout: Low Profile
“A” Compartment Layout
“B” Compartment Layout

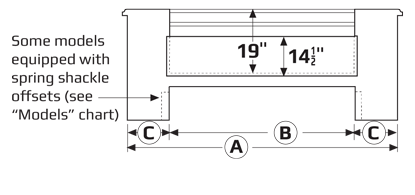

Rear View
Compartment Layout: 132
“A” Compartment Layout

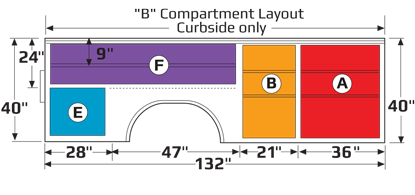

“B” Compartment Layout

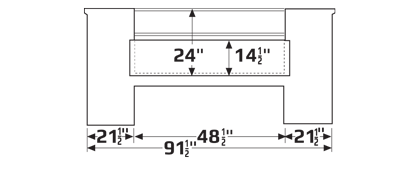

Rear View
Features

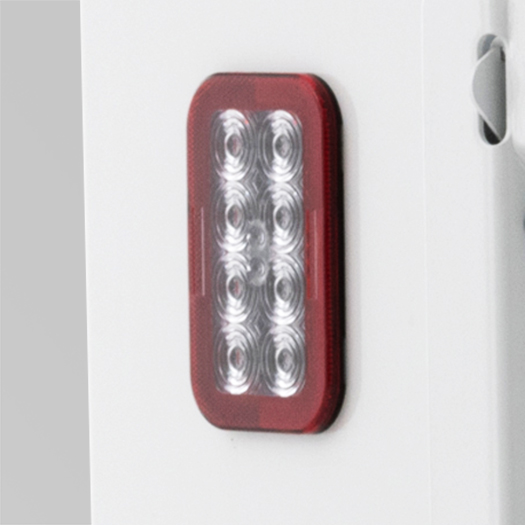

LED Lights
Reading service and enclosed utility bodies are equipped with long-lasting LED lights for worry-free, low-maintenance service, including clearance, marker, stop, tail, turn and reverse lights. You’ll improve your vehicle’s visibility and safety in any environment.

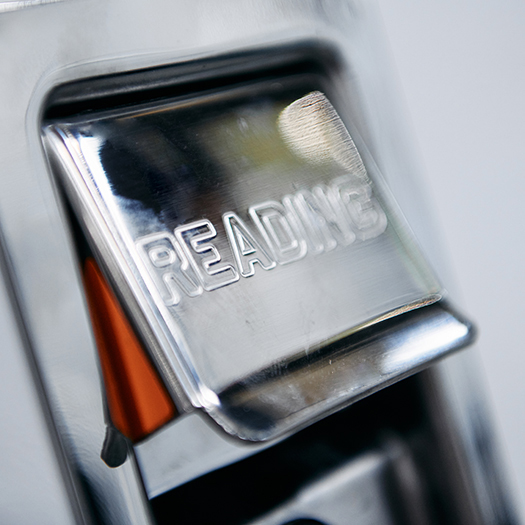

Stainless Steel Rotary Locks With Paddle Handles
Reading’s stainless steel locks and paddle handles have a clean, fastener-free appearance that’s both professional and functional. Locks and handles include a pry-resistant, automotive-style “free-wheeling” design with double-bitted keys. Handles are gasketed and include O-rings to prevent water intrusion. Locks are compatible with Reading’s optional Latch-Matic® remote locking system.

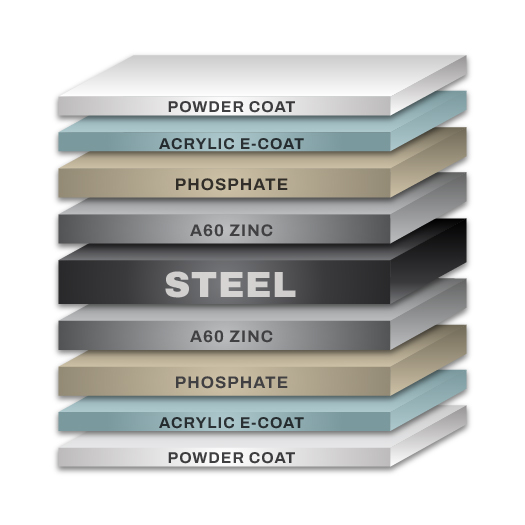

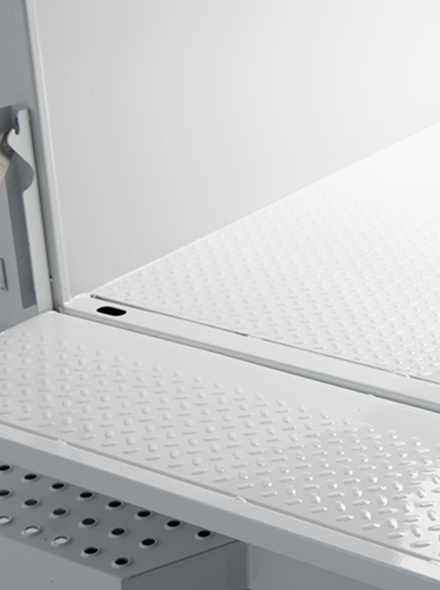

A60 Galvannealed Steel Construction
Premium A60 galvannealed steel features a bonded zinc alloy surface that is exceptionally hard, scratch resistant and corrosion resistant.

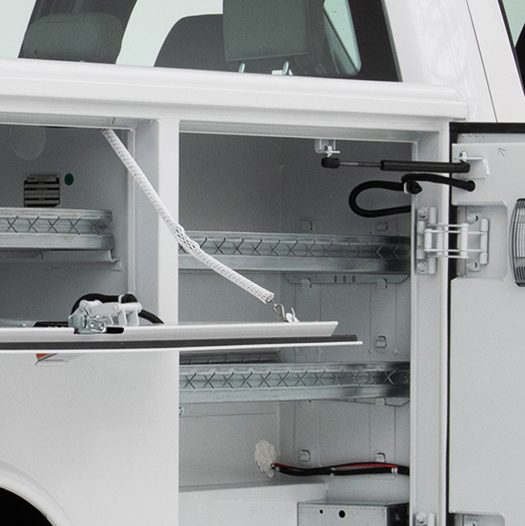

Galvanized Shelves
Designed for heavy-duty usage, galvanized shelves provide 2″ dividers for small item storage. Also available: full access between all vertical compartments for more extended tool storage.
Hidden Hinges
Reading’s signature hidden hinges are designed to resist forcible entry, and provide the ultimate in clean, professional appearance. This robust and concealed hinge design provides protection against corrosion without requiring frequent lubrication or maintenance. They are fully adjustable and easy to replace without special tools.
Seamless Wheelhouse Panel
When your truck kicks up dirt, mud, and salt, that buildup can cause damage and corrosion. Reading service and enclosed utility bodies are designed with with seamless wheelhouse panels to give dirt, moisture and corrosives fewer places to collect.
