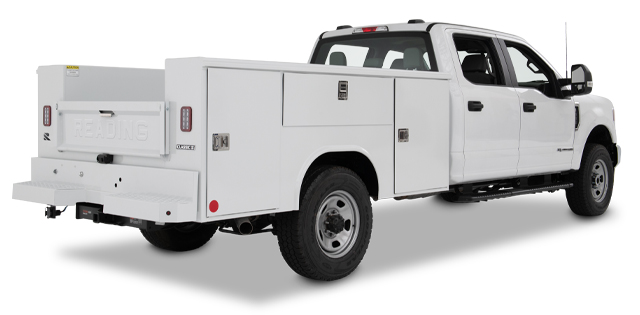

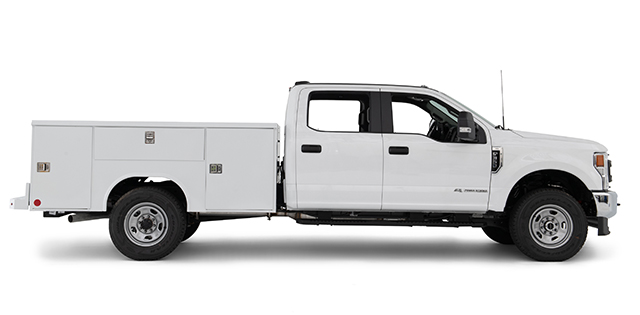

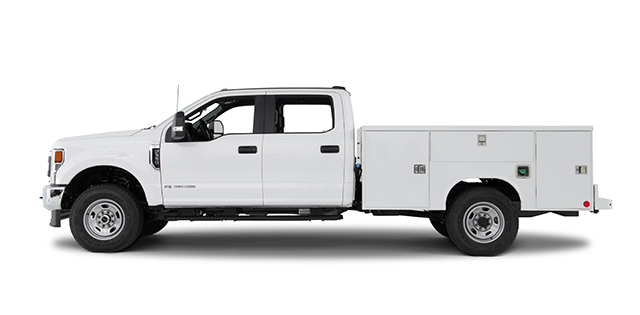

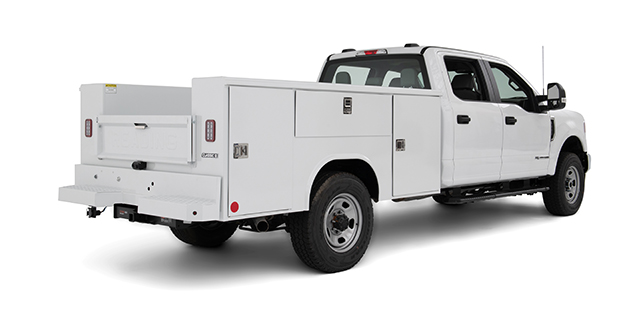

Classic II Aluminum Service Body
One body that delivers so many benefits including superior fuel economy, increased payload and unmatched corrosion resistance. A true classic that’s sure to save you money and time.
Aluminum chock block holders with chains to secure chock blocks. Can be ordered as single or dual per body side. Protects the service body from nicks and scratches from repeated insertion and removal of chock blocks. Available for both the Aluminum Classic II and Steel Classic II.
Bright finish aluminum treadplate splash guards are installed on the front of body panels and on top of the tailgate to produce an appealing, modern look and protect against regular wear and tear from road travel and loading. Available on the Aluminum Classic II and the Steel Classic II.
Ensure that you’ll be able to see your stored equipment and tools at any time of day with compartment lighting, which is automatically activated with Latch-Matic® keyless remote controller. These lights are programmed to go off automatically after 10 minutes or when the doors are locked, which helps to maximize the bulb’s lifespan. The lights feature impact-resistant Lexan lenses.
The frame-mounted recessed bumper creates an additional degree of sturdiness when loading and unloading, and the pooched anti-slip surface helps increase the safety of the service body by adding more steady space to work on. The bumpers have LED lights included to maintain high levels of visibility.
Create a secure seal on your service body compartment doors without sacrificing convenience, all with the snap of a single handle and padlock. The master locking steel slide bar simultaneously locks an entire compartment side to keep your tools and other equipment safe. The bar, which works independently of the Latch-Matic remote system, is spring-loaded for easy operation.
Rugged steel construction helps to maintain a robust and durable grip on all of your pipes regardless of size, design or material. The rack holds pipe sections securely in place, allowing you to maximize the available space on your service body. Available on both the Aluminum Classic II and the Steel Classic II.
Aluminum Classic II - Single Wheel
| MODEL | APPROX WT | CAB-TO-AXLE | A | B | C | D | APPROX. COMPARTMENT CLEAR DOOR OPENINGS | |||||||||||||||
| E | F | G | H | I | ||||||||||||||||||
| STANDARD | ||||||||||||||||||||||
| **78-SWs | 453 lbs. | 40” | 18” | 42” | 18” | 78” | 12-1/2” x 33-3/8” | 40-1/2” x 11-7/8” | 12-1/2” x 33-3/8” | 56-1/2” x 11-7/8” | 12-1/2” x 16-1/4” | |||||||||||
| 82F-SW | 508 lbs. | 40″ | 17″ | 42″ | 23″ | 82″ | 11-1/2” x 33-3/8” | 40-1/2” x 11-7/8” | 17-1/2” x 33-3/8” | 61-1/2” x 11-7/8” | 17-1/2” x 16-1/4” | |||||||||||
| *U98-SWs | 543 lbs. | 56” | 28” | 47” | 23” | 98” | 22-1/2” x 33-3/8” | 45-1/2” x 11-7/8” | 17-1/2” x 33-3/8” | 66-1/2” x 11-7/8” | 17-1/2” x 16-1/4” | |||||||||||
| *U108-SWs | 595 lbs. | 60” | 33” | 47” | 28” | 108” | 27-1/2” x 33-3/8” | 45-1/2” x 11-7/8” | 22-1/2” x 33-3/8” | 71-1/2” x 11-7/8” | 22-1/2” x 16-1/4” | |||||||||||
| LOW PROFILE | ||||||||||||||||||||||
| **LP-78SWs | 427 lbs. | 40” | 18” | 42” | 18” | 78” | 12-1/2” x 28-3/8” | 40-1/2” x 6-7/8” | 12-1/2” x 28-3/8” | 56-1/2” x 6-7/8” | 12-1/2” x 16-1/4” | |||||||||||
| LP82-SW | 479 lbs. | 40″ | 17″ | 42″ | 23″ | 82″ | 11-1/2” x 28-3/8” | 40-1/2” x 6-7/8” | 17-1/2” x 28-3/8” | 61-1/2” x 6-7/8” | 17-1/2” x 16-1/4” | |||||||||||
| *ULP98SWs | 511 lbs. | 56” | 28” | 47” | 23” | 98” | 22-1/2” x 28-3/8” | 45-1/2” x 6-7/8” | 17-1/2” x 28-3/8” | 66-1/2” x 6-7/8” | 17-1/2” x 16-1/4” | |||||||||||
| *ULP108-SWs | 562 lbs. | 60” | 33” | 47” | 28” | 108” | 27-1/2” x 28-3/8” | 45-1/2” x 6-7/8” | 22-1/2” x 28-3/8” | 71-1/2” x 6-7/8” | 22-1/2” x 16-1/4” | |||||||||||
Compartment Layout: Standard
“A” Compartment Layout

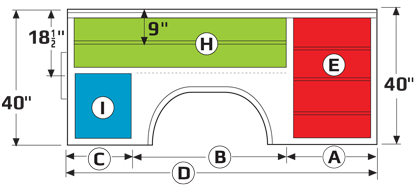

“B” Compartment Layout

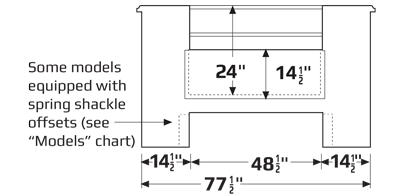

Rear View
Compartment Layout: Low Profile

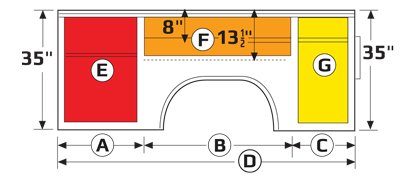

“A” Compartment Layout

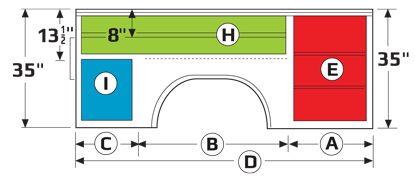

“B” Compartment Layout
Rear View
Aluminum Classic II - Dual Wheel
| MODEL | APPROX. WT. | CAB-TO-AXLE | A | B | C | APPROX. COMPARTMENT CLEAR DOOR OPENINGS | J | K | L | M | ||||||||||||||||||
| E | F | G | H | I | ||||||||||||||||||||||||
| STANDARD | ||||||||||||||||||||||||||||
| U98-DWs | 604 lbs. | 56” | 91-1/2” | 48-1/2” | 21-1/2” | 22-1/2” x33-7/8” | 45-1/2” x11-7/8” | 17-1/2” x33-3/8” | 66-1/2” x11-7/8” | 17-1/2” x16-1/4” | 28” | 47” | 23” | 98” | ||||||||||||||
| U108-DW | 656 lbs. | 60” | 91-1/2” | 48-1/2” | 21-1/2” | 27-1/2” x33-7/8” | 45-1/2” x11-7/8” | 22-1/2” x33-3/8” | 71-1/2” x11-7/8” | 22-1/2” x16-1/4” | 33” | 47” | 28” | 108” | ||||||||||||||
| LOW PROFILE | ||||||||||||||||||||||||||||
| ULP98-DWs | 567 lbs. | 56” | 91-1/2” | 48-1/2” | 21-1/2” | 22-1/2” x28-3/8” | 45-1/2” x6-7/8” | 17-1/2” x28-3/8” | 66-1/2” x6-7/8” | 17-1/2” x16-1/4” | 28” | 47” | 23” | 98” | ||||||||||||||
| ULP108-DW | 617 lbs. | 60” | 91-1/2” | 48-1/2” | 21-1/2” | 27-1/2” x28-3/8” | 45-1/2” x6-7/8” | 22-1/2” x28-3/8” | 71-1/2” x6-7/8” | 22-1/2” x16-1/4” | 33” | 47” | 28” | 108” | ||||||||||||||
| MODEL | APPROX. WT. | CAB-TO-AXLE | APPROX. COMPARTMENT CLEAR DOOR OPENINGS | |||||||||||||||||||||||||
| A | B | C | D | E | F | |||||||||||||||||||||||
| 132 BODIES | ||||||||||||||||||||||||||||
| UR132A-DW | 803 lbs. | 84″ | 27-1/2″x33-7/8″ | 17-1/2″x33-3/8″ | 45-1/2″x11-7/8″ | 22-1/2″x33-3/8″ | 22-1/2″x16-1/4″ | 71-1/2″x11-7/8″ | 27-1/2″x33-7/8″ | 17-1/2″x33-3/8″ | 45-1/2″x11-7/8″ | 22-1/2″x33-3/8″ | 22-1/2″x16-1/4″ | 71-1/2″x11-7/8″ | ||||||||||||||
Compartment Layout: Standard

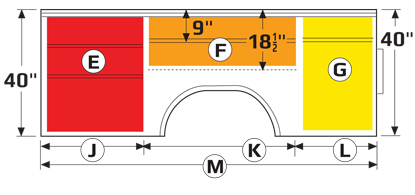

“A” Compartment Layout

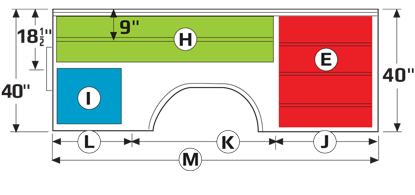

“B” Compartment Layout

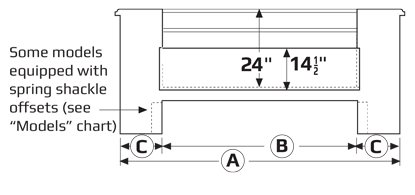

Rear View
Compartment Layout: Low Profile

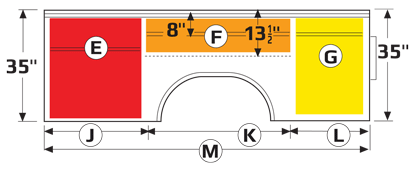

“A” Compartment Layout

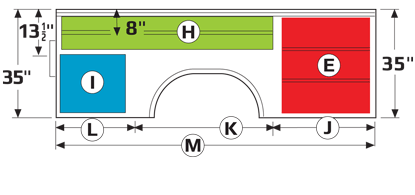

“B” Compartment Layout
Rear View

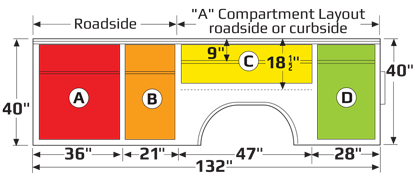

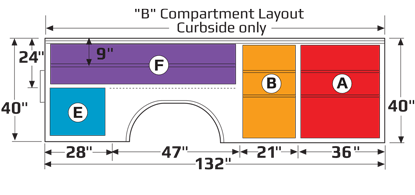

Compartment Layout: 132

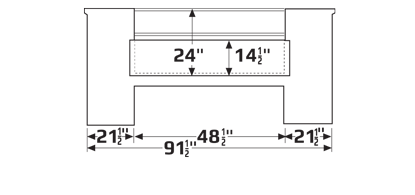

Rear View
Features
Triple-Protection Finish- Aluminum
All of our aluminum service bodies feature a heavy duty aluminum, zinc phosphate bath for improved adhesion of our heavy-duty powder coat finish for the most durable, corrosion-resistant finish available anywhere.
Powder Coat Finish
A durable, high-gloss polyester powder coat that is electrically bonded to surfaces and melted to form a durable, corrosion-resistant finish. Produces a brighter finish that resists corrosion, chemicals, humidity, scratches, chips and UV damage. Standard on all service body models.

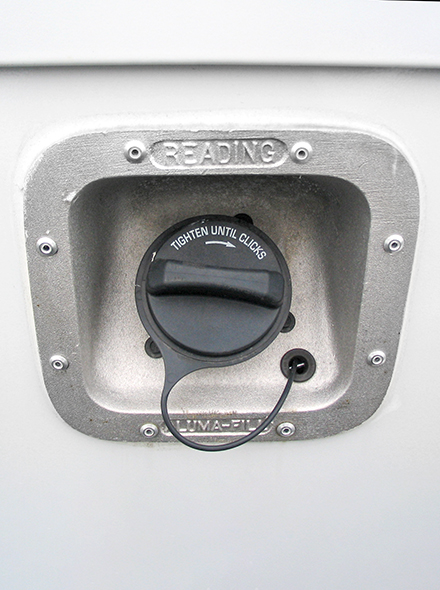

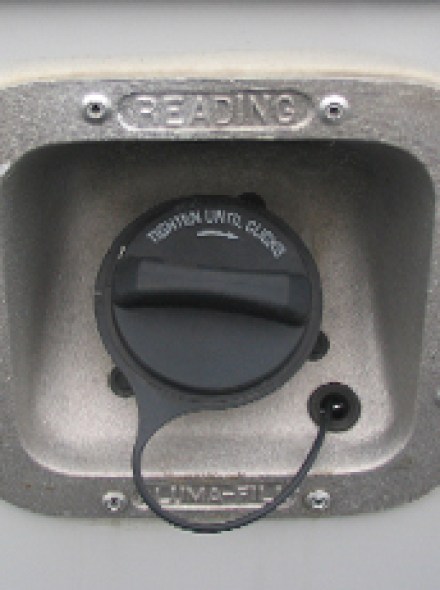

Aluma-Fill® Cup
An all-aluminum dish around the fuel cap protects the body from accidental nicks and scratches during refueling, and is more durable than typical plastic brackets.

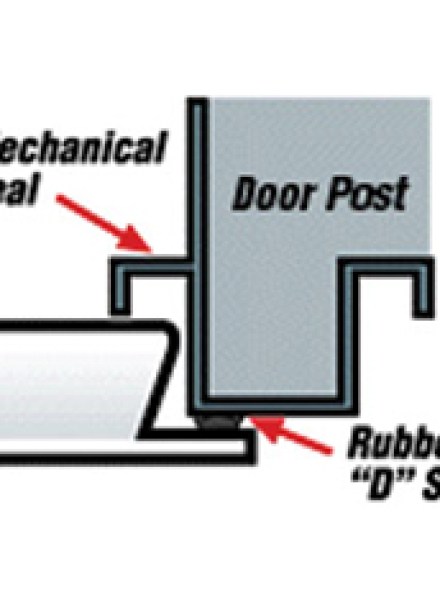

Dual-Pro® Seal System
Patented design increases clear door openings in every compartment of the body. Large, automotive quality bubble-type seal and mechanical seal provide a dual line of defense against weather.
Nitrogen Gas Strut Door Holders
All vertical compartment doors are equipped with nitrogen gas strut door holders. Struts hold the doors in the open position and provide a smooth, controlled motion on close, to prevent overslam and body damage.

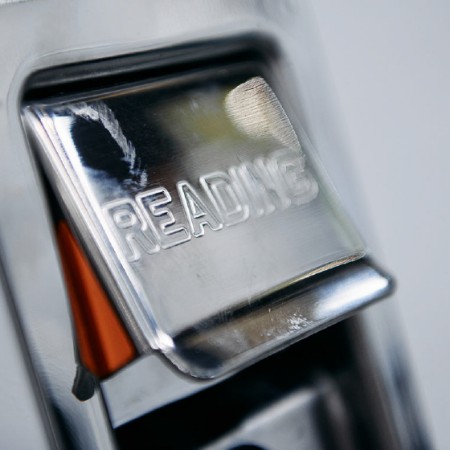

Stainless Steel Rotary Locks With Paddle Handles
Reading’s stainless steel locks and paddle handles have a clean, fastener-free appearance that’s both professional and functional. Locks and handles include a pry-resistant, automotive-style “free-wheeling” design with double-bitted keys. Handles are gasketed and include O-rings to prevent water intrusion. Locks are compatible with Reading’s optional Latch-Matic® remote locking system.
Pooched Bumper
Reading service and enclosed utility bodies are offered with a selection of ‘pooched’ bumpers that improve traction and give you sure-footed access to the cargo area. Bumpers are galvannealed steel for outstanding corrosion resistance, and available either straight, or with a center recess to provide easy access to a trailer hitch.
Hidden Hinges
Reading’s signature hidden hinges are designed to resist forcible entry, and provide the ultimate in clean, professional appearance. This robust and concealed hinge design provides protection against corrosion without requiring frequent lubrication or maintenance. They are fully adjustable and easy to replace without special tools.

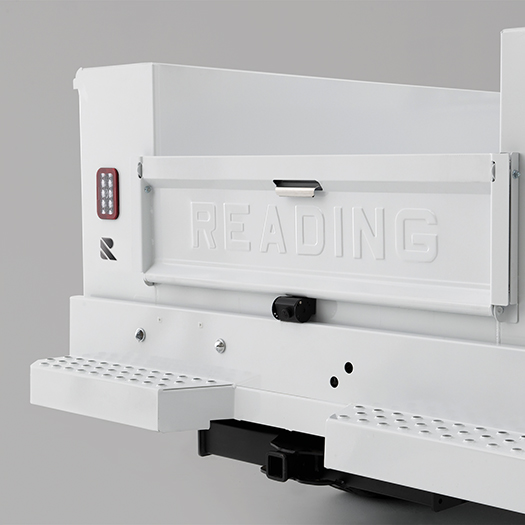

Slam-Action Tailgate
The iconic Reading tailgate is easy to open and shut with a pickup-style latch and slam-action closure, and includes a Stainless Steel polished handle on Classic II. Tailgate is 14″ tall with a treadplate working surface, to provide sure-footed access to the loadspace. The latching hardware is stainless steel — knee braces, locking rods, hinge rods and striker channels. Knee braces are removable and protect against rust and corrosion while allowing the tailgate to swing down completely.
Seamless Wheelhouse Panel
When your truck kicks up dirt, mud, and salt, that buildup can cause damage and corrosion. Reading service and enclosed utility bodies are designed with with seamless wheelhouse panels to give dirt, moisture and corrosives fewer places to collect.
Undercoated Aluminum Understructure
Heavy-gauge aluminum crossmembers and longitudinal rails help to protect against long-term wear and corrosion while helping to keep the service body at a lower weight. Standard on aluminum service bodies and vans.
Heavy-Duty Aluminum Compartment Doors
Made from heavy-gauge aluminum, the double-panel compartment doors on our aluminum service bodies are designed for strength and tested for reliability. Aluminum doors contribute to a lighter weight, fuel-efficient truck without giving up long-term durability.
Similar Truck Bodies

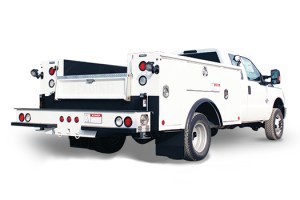

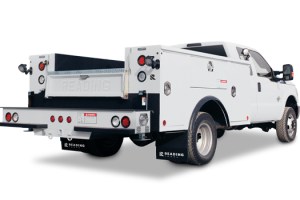

Mechanic Service Body Series
For mechanics who work in the most demanding jobsites and need something other than the typical service body. Loaded with impressive standard features including a heavy-duty ladder-frame understructure.
Discover More

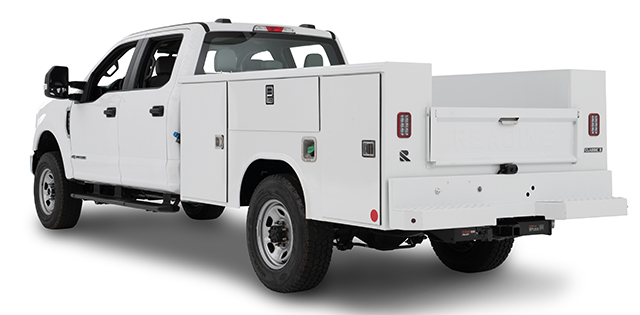

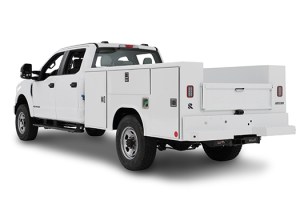

Classic II Steel Service Body
Get the durability and strength of premium steel to take on the toughest jobs. Our innovative locking system and an abundance of storage secures and organizes your tools. Built to last for the long haul.
Discover More

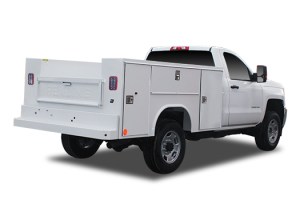

SL Service Body
